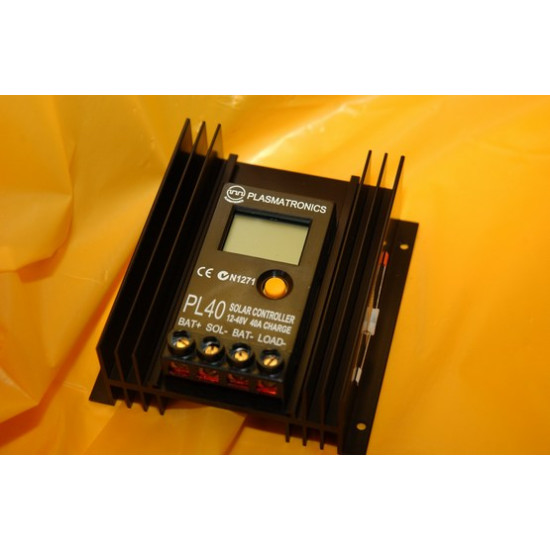

40A 12v - 48v Plasmatronics PL40 Smart Regulator

40A 12v - 48v Plasmatronics PL40 Smart Regulator

INTELLIGENT REGULATOR - PL40

redline


The PL series of charge controllers give you the freedom to operate your solar electric system the way you want to.

They offer complete control over the charge cycle, plus an unprecented amount of useful information about current and past performance.

PL regulators help to protect the system with a built in low battery disconnect switch. In addition, the versatile event controller can switch power on or off according to criteria set by the user. This allows the PL to do extra tasks such as switching a light on at night or keeping a water tank full by operating a pump when needed.

The user can select either Pulse Width Modulation or slow speed switching. Regulation can be done in both series and shunt modes. Other features include backup generator control and charging a second battery.

Informative

Display shows battery voltage, charge current, ampere hours in and out of battery, load being drawn from the battery and which part of the charge cycle the battery is in.

Easy to maintain

Information is available for the past 30 days - so even if the user doesn?t remember what happened, the regulator will.

Well Connected

With the optional PLI interface and PLcom software, the user can access the regulator from a computer. Data can be read or settings adjusted. This can be done remotely using a modem.

Versatile

It may be the only regulator you will ever need to stock. Its capacity to handle 12, 24 and 48V systems and allow complete control of the regulation cycle mean you can use it almost anywhere.







Here is the size difference between the PL20 & the PL40

Difference between PL & PL40 regulator



FEATURES SPECIFICATIONS

Adjustable:
All settings are adjustable and are stored in a non volatile memory
Display:
User friendly alphanumeric LCD gives you words to explain the numbers.
Energy Metering:
Shows daily charge and discharge amp hours.
Three Step Regulation:
Boost, Absorption and Float modes with an optional periodic Equalisation mode.. Can switch in series, shunt or series + shunt modes.
History:
Records charge and load amp hours, max and min battery voltages and state of charge for the last 30 days. Remembers how much was really collected and used.
Generator Control:
A sophisticated generator controller is included with four different modes of control available and a quiet time option.
Event Control:
A versatile event controller allows the load to be turned on or off under a user selected set of conditions. Can be used for lighting, pumping , frost control etc.
Alarm:
There is an adjustable low or high battery voltage alarm.
Second Battery:
When the main battery is full, use the waste energy to charge an auxilary battery. The PL supplies a signal to switch a relay to the second battery.
Remote Control:
A computer can communicate with the PL using the PLI RS232 interface. Data can be downloaded and settings adjusted from far away.
Protection:
Protected against short circuit, reverse flow, lightning. Low battery load disconnect function built in. Current limit for over heat or over current. Conformal coating applied to protect against corrosion.
External Shunts:
Two external shunts can be connected using the DC isolated PLS2 bi-directional shunt adaptor.

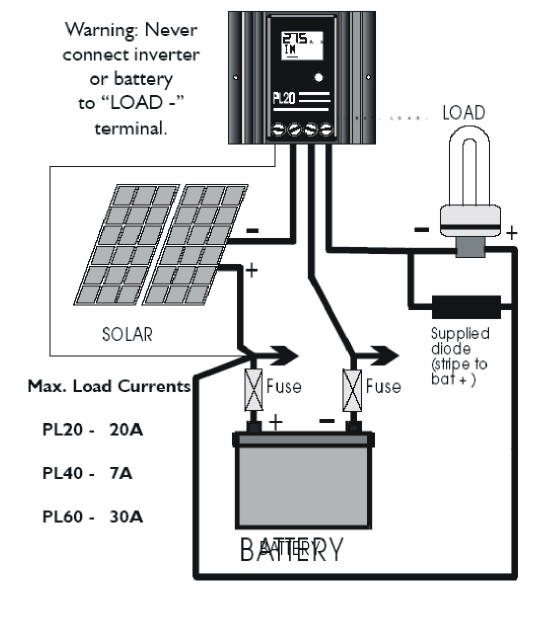

Uses



Picture of a PL20 control unit   Picture of a PL20 control unit



Performance

Right Click & 'Save As' to keep!

Extras

Are you wantiing to know if the PL can be used for wind or a hybrid mix of wind & solar? See below!

Brochure

Right CLick & 'Save As' to keep!

Manual

Right Click & 'Save As' to keep!

Shunt

Right Click & 'Save As' to keep!

Wind 1

Right Click & 'Save As' to keep!

Wind 2

Right Click & 'Save As' to keep!

Play with the PL now!



PL computer conect

Unlimited Blocks, Tabs or Accordions with any HTML content can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.
40A 12v - 48v Plasmatronics PL40 Smart Regulator

Write a review

Please login or register to review
  • Stock: In Stock
  • Model: PL40
  • Weight: 0.55kg
190 sold
$415.00
Ex Tax: $377.27
