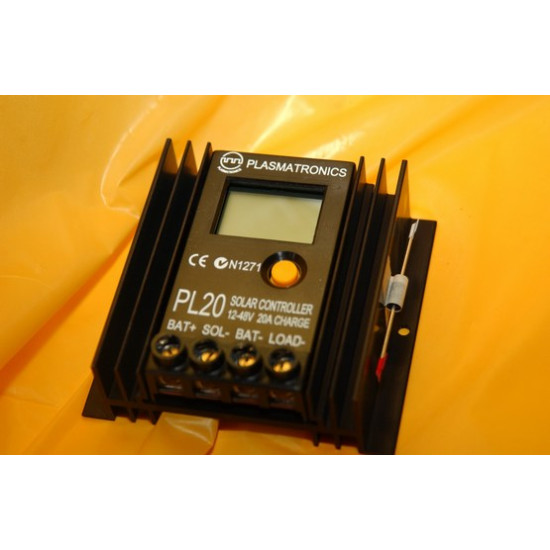

20A 12v - 48v Plasmatronic PL20 Smart Regulator

Adjustable:

All settings are adjustable and are stored in a non volatile memory

Display:

User friendly alphanumeric LCD gives you words to explain the numbers.

Energy Metering:

Shows daily charge and discharge amp hours.

Three Step Regulation:

Boost, Absorption and Float modes with an optional periodic Equalisation mode.. Can switch in series, shunt or series + shunt modes.

History:

Records charge and load amp hours, max and min battery voltages and state of charge for the last 30 days. Remembers how much was really collected and used.

Generator Control:

A sophisticated generator controller is included with four different modes of control available and a quiet time option.

Event Control:

A versatile event controller allows the load to be turned on or off under a user selected set of conditions. Can be used for lighting, pumping , frost control etc.

Alarm:

There is an adjustable low or high battery voltage alarm.

Second Battery:

When the main battery is full, use the waste energy to charge an auxilary battery. The PL supplies a signal to switch a relay to the second battery.

Remote Control:

A computer can communicate with the PL using the PLI RS232 interface. Data can be downloaded and settings adjusted from far away.

Protection:

Protected against short circuit, reverse flow, lightning. Low battery load disconnect function built in. Current limit for over heat or over current. Conformal coating applied to protect against corrosion.

External Shunts:

Two external shunts can be connected using the DC isolated PLS2 bi-directional shunt adaptor.

Uses

Performance

Extras

Are you wantiing to know if the PL can be used for wind or a hybrid mix of wind & solar? See below!
