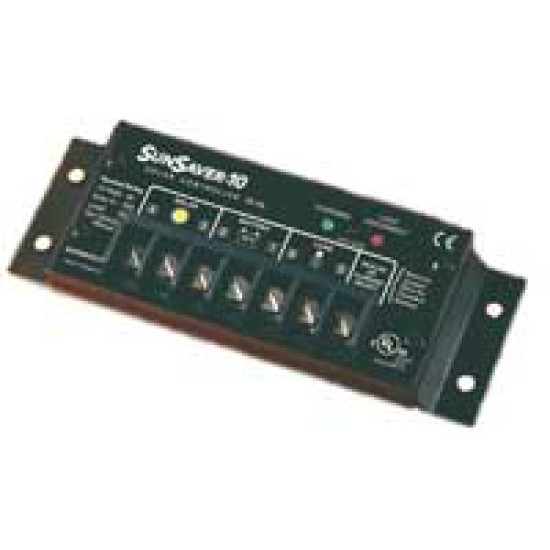

10A 24v SunSaver SS10

10A 24v SunSaver SS10



Morningstar's SunSaver is the world's leading small solar controller for both professional and consumer applications.

Morningstar Corporation is a world-leading supplier of photovoltaic (PV) controllersusing advanced technology. Their product range of TriStar, ProStar, SunSaver, SunLight and SunGuard have been recognized by the international PV market as the most advanced and highest-quality controllers available.



ADVANTAGES:

  • Extremely High Reliability
    • Full, continuous current ratings at 60? ambient temperatures.
    • Advanced lightning and transient overvoltage protection.
    • Reverse polarity protection.
    • High quality surface-mount components.
    • Series switching design for improved safety and protection.
  • Outstanding PWM Battery Charge Control
    • Confirmed increase in battery capacities and operating life.
    • PWM Pulse charging for highest charge acceptance.
    • Standard temperature compensation.
    • Standard Sealed / Flooded battery select at the terminal.
    • Accuracy to millivolt levels.
  • Highest Levels of Quality
    • Approved for use in Hazardous Locations: Class 1, Div. 2, Groups A-D.
    • Built in a world class ISO 9002 certified facility.
    • Automated production so every unit is exactly the same.
    • Parts soldered to .0006 inch accuracy.
    • Anodized case, marine terminals, custom potting material.



Top Quality Charge Regulation!

This technology provides:



  • Proven Reliability


  • PWM Battery Charging


  • Consistent High Quality

    Why PWM?



  • Is approved for use in hazardous locations -
    Class 1, Division 2, Groups A, B, C, D.


  • Series design (not shunt).


  • No Need to derate.


  • Fully encapsulated in epoxy potting.


  • Ability to parallel for 40 amps or more.









    Performance

    Mechanical & Electrical Specifications



    12 V

    24 V

    Anodised Aluminium Case




    Marine Rated Terminals




    Epoxy Encapsulated




    Wire size:

    #10AWG(5 .2mm2)

    #10AWG(5 .2mm2)

    Weight:

    0.23 kg

    0.23 kg

    Rated Solar Input

    6.5 A or 10 A

    20 A

    Rated Load

    6 A or 10 A

    20 A

    25% Current Overload

    5 min

    5 min

    Regulation Voltage:



    Sealed Battery

    14.1 V

    28.2 V

    Flooded Battery

    14.4 V

    28.8 V

    Load Disconnect

    11.5 V

    23.0

    LVD Reconnect

    12.6 V

    25.2

    Temp. Comp. (mV/?C)

    ?28

    ?56

    Self-consumption

    6 to 10 mA

    6 to 10 mA

    Operating Temp.

    ?40 to +85?C

    ?40 to +85?C



    Right CLick & 'Save As' to keep!



    Extras

    Data

    Right CLick & 'Save As' to keep!

    Manual

    Right Click & 'Save As' to keep!

    Electrical Diagram

    Right Click & 'Save As' to keep!

    Pumping Diagram

    Right Click & 'Save As' to keep!



    Unlimited Blocks, Tabs or Accordions with any HTML content can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.
    10A 24v SunSaver SS10

    Write a review

    Please login or register to review
    • Stock: In Stock
    • Model: SS1024v
    • Weight: 0.45kg
    190 sold
    $99.00
    Ex Tax: $90.00
