The Solsum 6.6x charge controller is highly featured with automatic voltage regulation and battery gassing functions, temperature compensation, reverse polarity protection and a multi-color LED that indicates the battery voltage. The controller uses Pulse Width Modulation (PWM) for optimum battery charging and in short... provides reliable protection for both 12v and 24v systems.
GREAT FOR 4WD - CARAVAN - ELECTRIC FENCE - CAMPING ETC!
Steca

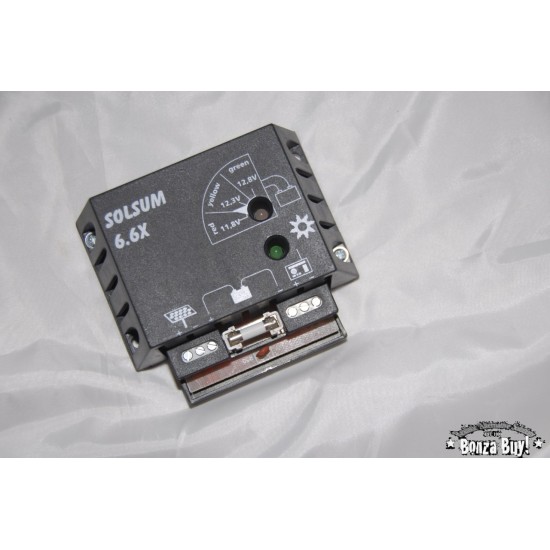

Solsum 6.6X Charge Controller
SunWize-Stecca newest, and fourth, generation of solar charge controllers sets new standards in solar technology. For the first time a solar charge controller is offered in the market which is equipped with an integrated circuit ( ASIC ) specially designed for solar charging. This integrated circuit, called Atonic , provides a charge controller with new functions. Atonic is more than protective device for your battery, and contains the most recent and innovative technolgy. Overcharge protection is provided by a pulse-with-modulated shunt controller which guarantees quick and gentle charging of the battery (characteristic IV curve ).
Wear-resistant MOSFET transistors are used for the overdischarge protection in this charge controllers, whereby a maintenance-free operation with an extremely long product life is ensured. Absolutely new in this price class is a cycle charging, boost charging and a temperature compensation which are regularly integrated in these charge controllers. An LED colour display gives information about voltage of the accumulator.
Solsum Charge Controllers set new Standards in this Price and Power Class!
Safety Features:
• Overvoltage protection by integrated varistor
• Wrong polarity protection at Battery and Module
• Proof against operation errors
• Built-in fuse
• Electronically short circuit protected
• Voltage-display by changing colour
red 11,8 V
yellow to red-yellow 12,3 V
green 12,8 V
Charging Functions:
• Shunt regulator - fast and gentle charging
• Time-delayed overdischarge protection
• Temperature compensation by built-in sensor
• Automatic voltage adaption
• Cycle charging
• Boost charging
• Schottky diode
• MOSFET switch
• LED- display of charging function
Solsum 5.0* | Solsum 6.6 | Solsum 8.0* | Solsum 8.8 | |
| Max.Charge Current at 50° C | 5 A | 6 A | 8 A | 8 A |
| Load Current at 50° C | - | 6 A | - | 8 A |
| Connection Terminal (fine/single wire) | 2,5 mm " | 2,5 mm" | 2,5 mm" | 2,5 mm" |
| Weight | 108 g | 110 g | 110 g | 112 g |
| Protection | IP 22 | IP 22 | IP 22 | IP 22 |
| Di mensions | 85x98x34 mm | 85x98x34 m m | 85x98x34 m m | 85x98x34 mm |
| Ambient Temperature | -25° C bis 50° C | -25° C bis 50° C | -25° C bis 50° C | -25° C bis 50° C |
| System Voltage | 12/24 V | 12/24 V | 12/24 V | 12/24 V |
* No load disconnection. Only fused with 6,3 and 10 A
