Limited Opportunity: 6 secondhand Panels
Used for around 5 Years - still have fantastic output.
Details:
16.7 Volt (max), 110 Watt, 6.6 Amp, 1477 x 651 x 35mm, 11.9Kg
Features and Benefits
Designed for optimum use in residential, commercial and battery charging applications
36 single-crystal cells connected in series
Generates a peak power of 110 watts at 16.7 volts.
Exacting tolerances of ?5 percent ensure the module satisfies maximum rated power output
Robust, lightweight anodized aluminum frame with pre-drilled holes for quick installation
Engineered for the most rugged environments including hail, snow and ice storms
Can be purchased with or without industry standard multi-contact connectors
Physical Characteristics
Overall Physical Properties Length (A) 58.1 inches (1,477 mm) Width (B) 26.0 inches (661 mm) Depth of Frame (C) 1.4 inches (35 mm) Depth Including J-box (D) 2.2 inches (55 mm) Connector Length (when applicable) (E) 15.0 inches (381 mm) Weight 26.1 pounds (11.9 kg) Mounting Hole Locations Center Spacing (F) 25.3 inches (643 mm) Edge Distance (G) 16.4 inches (417 mm) Width Spacing (H) 25.3 inches (616 mm) Mounting Hole Diameter 0.26 inches (6.7 mm)
Physical Design Properties Weight (Wind) Bearing Potential 50 lb/ft (125 mph equivalent) Hailstone Impact Resistance 1 inch at 50 mph (25 mm at 80 kph)
Electrical Performance
Typical Performance Characteristics
Peak Power (Wp) Watts 110
Maximum Power Voltage (Vmp) Volts 16.7
Maximum Power Current (Imp) Amps 6.6
Open Circuit Voltage (Voc) Volts 21.2
Short Circuit Current (Isc) Amps 7.4
Short Circuit Temperature Coefficient mA/?C +3
Open Circuit Voltage Coefficient V/?C -0.08
Maximum Power Temperature Coefficient %/?C -0.5
Maximum Series Fuse Amps 15
Used for around 5 Years - still have fantastic output.
Details:
16.7 Volt (max), 110 Watt, 6.6 Amp, 1477 x 651 x 35mm, 11.9Kg
Features and Benefits
Designed for optimum use in residential, commercial and battery charging applications
36 single-crystal cells connected in series
Generates a peak power of 110 watts at 16.7 volts.
Exacting tolerances of ?5 percent ensure the module satisfies maximum rated power output
Robust, lightweight anodized aluminum frame with pre-drilled holes for quick installation
Engineered for the most rugged environments including hail, snow and ice storms
Can be purchased with or without industry standard multi-contact connectors
Physical Characteristics
Overall Physical Properties Length (A) 58.1 inches (1,477 mm) Width (B) 26.0 inches (661 mm) Depth of Frame (C) 1.4 inches (35 mm) Depth Including J-box (D) 2.2 inches (55 mm) Connector Length (when applicable) (E) 15.0 inches (381 mm) Weight 26.1 pounds (11.9 kg) Mounting Hole Locations Center Spacing (F) 25.3 inches (643 mm) Edge Distance (G) 16.4 inches (417 mm) Width Spacing (H) 25.3 inches (616 mm) Mounting Hole Diameter 0.26 inches (6.7 mm)
Physical Design Properties Weight (Wind) Bearing Potential 50 lb/ft (125 mph equivalent) Hailstone Impact Resistance 1 inch at 50 mph (25 mm at 80 kph)
Electrical Performance
Typical Performance Characteristics
Peak Power (Wp) Watts 110
Maximum Power Voltage (Vmp) Volts 16.7
Maximum Power Current (Imp) Amps 6.6
Open Circuit Voltage (Voc) Volts 21.2
Short Circuit Current (Isc) Amps 7.4
Short Circuit Temperature Coefficient mA/?C +3
Open Circuit Voltage Coefficient V/?C -0.08
Maximum Power Temperature Coefficient %/?C -0.5
Maximum Series Fuse Amps 15
Unlimited Blocks, Tabs or Accordions with any HTML content can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

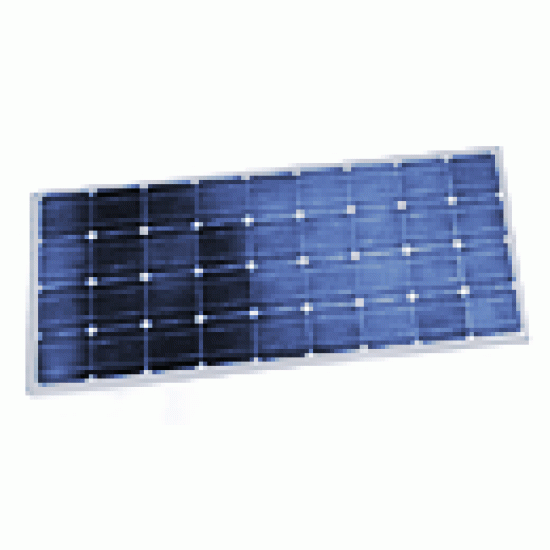

Solar Module 110 Watt GE 16.7V 6.6A
$330.00
$890.00
Ex Tax: $300.00
You Save: $560.00 or 62.92%
