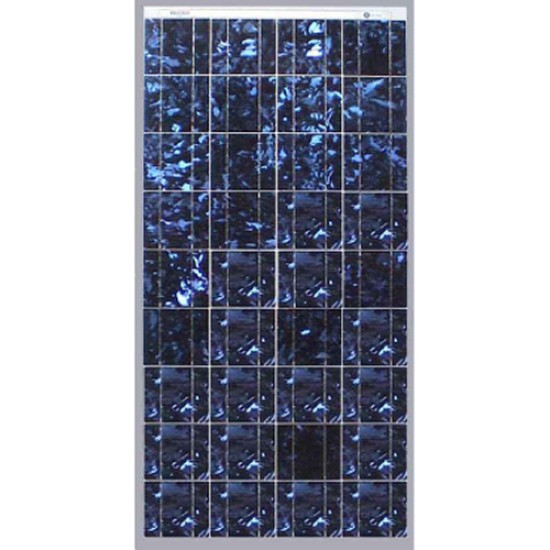

Solar Module 115w 17.1volt 6.7A BP 3115

Performance
Rated Power: 135 watts
Power Tolerance: +-3%
Nominal Voltage: 12 volts
Warranty: 25 years

Electrical Characteristics:
Maximum Power (Pmax): 115 Watts
Voltage at Pmax (Vmp): 17.1 Volts
Current at Pmax (Imp): 6.7 Amps
Warranted minimum Pmax: 109.3 Watts
Short-circuit Current (Isc): 7.5 Amps
Open-circuit Voltage: 21.8 Volts
Temperature coefficient of Isc: (0.065+-0.015)%/C
Temperature coefficient of Voc: -(80+-10)mV/C
Temperature coefficient of Pmax: -(0.5+-0.05)%/C
NOCT (Air 20C, Sun 0.8kW/m sq, wind speed 1m/s: 47+-2C
Maximum series fuse rating: 15 amp (S) / 20 amps (J)
Maximum system voltage: 600 V (US NEC), 1000V (TUV Rheinland & IEC 61215)

Mechanical Characteristics
Solar Cells (S J): 36 cells (156 x 156 mm) in a 4 x 9 matrix connected in series
Output cables (S J): RHW AWG #12 (4 mm square) cable with polarized weatherproof DC rated Multicontact connectors; asymmetrical lengths -900mm (-) and 800mm (+)
Junction box (J): J-Version junction box with 6 terminal connection block; IP 65, accepts PG 13.5, M20, 1/2 inch conduit, or cable fittings accepting 6 to 12 mm diameter cable. Terminals accept 2.5 to 10 mm square (8 to 14 AWG) wire.
Diodes (S J): IntegraBus technology includes Schottky by-pass diodes integrated into the printed circuit bus.
Construction (S J): Front: High transmission 3mm (1/8th inch) tempered glass. Back: Encapsulated: EVA.
Frame (S J): Clear anodized aluminum alloy type 6063T6. Color Silver

1. Module Warranty: 25-year limited warranty of 80% power output; 12-year limited warranty of 90% power output, 5-year limited warranty of material and workmanship. See your local representative for full terms of these warranties.
2. These data represent the performance of typical BP 3125 products, and are based on measurements made in accordance with ASTM E1036 corrected to SRC (STC).
3. During the stabilization process that occurs during the first few months of deployment, module power may decrease up to 3% from typical Pmax.

Included with each module: Self-tapping grounding screw, instruction sheet and warranty document.

Quality and Safety

    * Module power measurements calibrated to World Radiometric Reference through ESTI (European Solar Test Installation at Ispra, Italy).
    * Manufactured in ISO 9001 certified factories; conforms to European Community Directive 89/33/EEC, 73/23/EEC, 93/68/EEC; certified to IEC 61215
    * Framed modules certified by TUV Rheinland as Safety Class II (IEC 60364) equipment for use in systems up to 1000 VDC
    * Listed by Underwriter Laboratories for electrical and fire safety (Class C fire rating)
    * Approved by Factory Mutual Research in NEC Class 1, Division 2, Groups C & D hazardous locations (U)

Qualifications Test Parameters
Temperature cycling range: 40F to 185F / -40C to 85C
Humidity freeze, damp heat: 85% RH
Static load front and back (e.g. wind): 50 psf / 2400 Pa
Front loading (e.g. snow): 113 psf / 5400 Pa
Hailstone impact: 1" / 25 mm hail at 52 mph / 23 m/s

Dimensions (S J) (LWD): 59.4" x 26.5" x 1.97" / 1510 x 674 x 50 mm
Weight (S J): 26.5 lbs / 12.0 kg
