The details below are for the SE42 - but you are buying the better, newer SA 42 with Mk2 Management. Please check specifications before ordering as the details below are incorrect. We only have access to a couple of these so be quick - there no reservations and strictly first in first served basis.

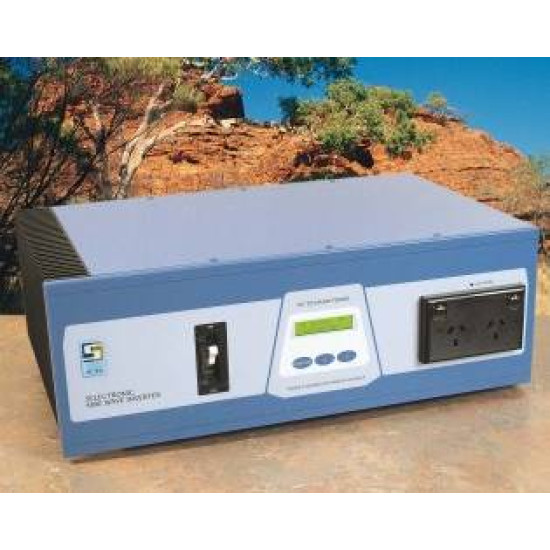

The Selectronic Sine Wave Inverter is a digitally synthesized true sine wave Inverter designed and manufactured in Australia for Australian Conditions.
The Selectronic Sine Wave Inverter provides a clean, quiet sine wave output with a degree of power and flexibility previously unavailable from a sine wave inverter. From the moment the Liquid Crystal Display bursts into life, you will unleash the power of the most sophisticated and innovative sine wave Inverter to be manufactured in Australia. The sine wave output gives you confidence that your Selectronic Sine Wave Inverter will run appliances easily and efficiently. Y ou will soon forget you are not connected to the mains.
Compatibility The Selectronic SA Sine Wave Inverter features a display panel allowing you to adjust the important parameters of the inverter whilst providing information about your system. This makes this
Inverter compatible with any remote power system.
Display Feature All important parameters of the Selectronic SA Sine Wave Inverter is adjustable via either the front panel or the optional remote keypad. The display will actively show you inverter status, time & day, AC volts, AC amps, battery volts and monitor all charge and discharge currents (with optional current shunt). The Selectronic SA Sine Wave Inverter can also be configured to control external circuits (eg to pump to a header tank once a week, control security lights or
start a generator) with the optional output interface.
Displays By scrolling through the displays you are able to read the DC battery volts, AC current and Inverter status. The display will also alert you to the cause of any inverter shut down due to high or low DC volts, AC overload and temperature overload. A set of diagnostic readings can also be accessed to assist in
remote troubleshooting.
Power The Selectronic Sine Wave Inverter has high surge power, a generous 30 minute rating, and enough continuous power to run most energy efficient remote
power systems 24 hours a day.
Demand Start In standby mode the Selectronic Sine Wave Inverter will turn on and off with any type of load. Should you need a different sensitivity setting, simply program the on board microprocessor via the front panel to start the smallest load or overcome a phantom load. This feature can be overridden if necessary and will save
you valuable battery power.
High & Low DC Voltage Cut Out The Selectronic Sine Wave Inverter has fully adjustable low voltage cut out and cut in, and high voltage cut out. Also a low voltage disconnect option can be selected to fully protect your batteries.
Safety Totally protected against thermal overload, current overload and AC short circuit. Input and output are electrically isolated for your safety and MEN
compatibility.
Modular Construction Each section of the Selectronic Sine Wave Inverter is constructed as a removable module which can be
quickly replaced minimising 'down time'.
| SA42 | | |
Input Voltage | 48V DC 3600W 5500W 10000W 3300W 5200W 10000W 40668V DC 38646V DC 60668V DC 50mA DC 400mA DC 78A DC 138A DC 210A DC 15A AC 41A AC 3W 6 30W 1 second maximum 220 ñ 240V AC ±4% 50Hz ±0.01% True sine wave <4% Nil 1875 V AC -10EC to 50EC Permanent | 500mm wide ◊ 180mm high ◊ 370mm 29kg / 32kg 1.5 metres with 10mm mounting lug Rear 3 terminal junction box with conduit Dual switched 3 pin GPO with neon Single pole circuit breaker 5 Years (conditional) |
SE SERIES INVERTERThe Selectronic SE42 sine wave inverter comes with many features not normally found in other inverters. An illuminated display on the front panel allows you to tailor your inverter to suit your needs, perform diagnostics, and take vital readings; no compromises needed. As if this is not enough, you also have the ability to upgrade to ENERGY MANAGEMENT Mk II as your needs develop. As you can see, there is now no need to limit the ability of your power system by the inability of your inverter. 40 - 68 Volt 3600 Watt (10,000w Surge) True SineWave Inverter No Compromise Displays Safety and Standards Simplicity Modular Construction Fully Upgradable
True value for money At fi rst glance Selectronic inverters may appear more expensive than competitors models, at Selectronic we have no problem with that, because we know that our product will outlast and out perform our competitors. We also believe that our products already meet the proposed Australia/New Zealand standard for inverters. As an environmentally aware company, Selectronic are opposed to the ?throw away? philosophy adopted in many parts of today?s society. While our product will continue to perform, countless competitors products will simply be thrown into landfi ll, adding to society?s problems of waste and pollution. If you care like we do, buy right, buy once. Selectronic have a wealth of experience in providing reliable Inverter solutions to remote and leisure applications. A 100% Australian owned and operated company, we have been servicing the Australian electronics industry since 1964 and have produced many thousands of inverters to Australia, NZ and throughout Asia. Selectronic has been the choice of professionals and project managers for years now, together with our ISO9001 quality accreditation for design and manufacturing, you can be sure our products are engineered to last. |
Features
Applications
Safe and Reliable |
SELECTRONIC SE42 INVERTER SPECIFICATIONSELECTRICAL | |||
PARAMETER | SE42 Inverter | CONDITION | |
Output Power | 3,600W | Max Continuous | |
Output Power | 3,300W | Max Continuous | |
Voltage Input Range | 40-68V DC | Range | |
Input Current | 0.05A DC | Stand By | |
Demand Start Sensitivity | 3-30W | User Adjustable | |
Low Voltage Shutdown | 38 - 46V DC | User Adjustable | |
High Voltage Shutdown | 60 -68V DC | User Adjustable | |
Output Voltage | Adjustable from 220 to 240V AC +/- 4% | @ Nominal DC Input, | |
Output Current | 15A AC | Max Continuous | |
Output Wave Shape | True Sine Wave | ||
Power Factor Limitations | Nil | ||

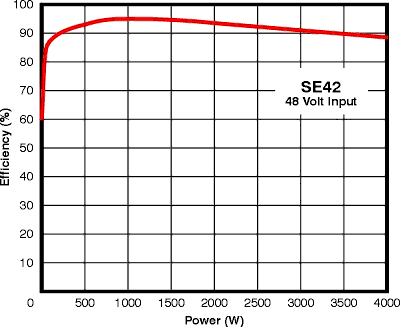

Efficiency |  | ||

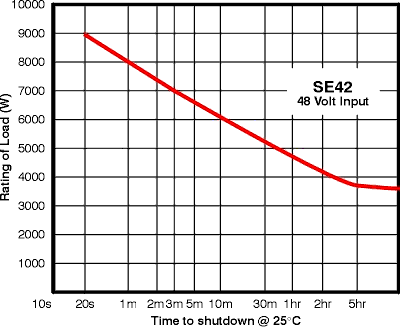

Time to Shutdown |  | ||
Input/Output Isolation | 1875 V AC | ||
Memory Retention | Permanent | ||
Operating Temperature Range | -10 ?C to 50 ?C | ||
Conforms to standards | AS3100 (wiring), AS3108, AS1044 (EMC), C tick | ||
| |||
Size | 500mm wide x 180mm high x 370mm deep | ||
Weight | 29kg | ||
Weight Packed | 32kg | ||
Input Lead Length | 1.5 metres | ||
Output Wiring Method | Rear three terminal junction box with conduit knock outs | ||
Output Socket | Dual switched GPO | ||
Chassis | Powder coated zinc steel (Wedgwood Blue) | ||
DC Isolation | Single Pole Circuit Breaker | ||
Warranty | 5 year parts and labour (Conditions apply) | ||
|
Performance Fast acting and highly accurate protection circuitry along with a generously proportioned superbly efficient ?Toroidal Power Transformer?, allows the inverter to provide huge short term power for starting motors or pumps. Our short term ratings are held for 2-5 seconds and we believe are unparalleled any where in the world. |
|
