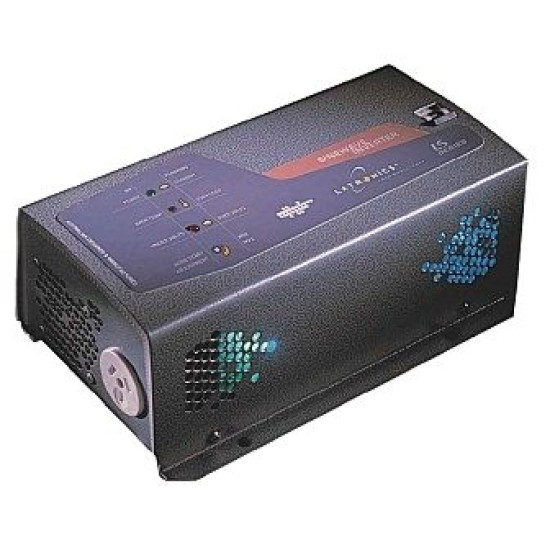

0600w 24v (2000w surge) 240v Inverter LS624

0600w 24v (2000w surge) 240v Inverter LS624
No Longer Available

LS SERIES INVERTER

 The Latronics? LS Series Inverter utilizes the most advanced microprocessor algorithms which guarantees your power conversion is pure and stable. The Latronics? LS Series Inverter is the most powerful and reliable Inverter on the market.

24v 600w  (2000w surge) True SineWave Inverter

Safety
All Latronics? Inverters have an isolation rating of 3500V between AC and DC via the toroidal transformer, which ensures extremely safe and risk free operation. Advanced switching electronics and control circuitry are all located on the DC input. The inverter AC output is connected directly to the transformer output winding.

Latronics? Inverters have the AC output (active and neutral) floating with respect to the DC and the earth. The earth connection is connected to the case only. This configuration provides the highest safety and the most flexibility for installation wiring.

  • Wall mount design
Allows flexibility and ease of installation.
  • Performance
True sinewave output with unmatched surge power enables the operation of demanding appliances, such as fridges, microwaves washing machines & pumps.
  • Pure Sinewave Output
Provides the ideal power source for all modern electronics.
  • Short Circuit Proof
Indestructable design protects itself against any AC shorts.
  • Reliability
Benchmark quality standards ensure optimum reliability, backed by a full 2/3 year parts and labour warranty.
  • Full Electronic Protection
Sophisticated circuitry provides protection against overload, short circuit, over temperature and high/low voltage shutdowns.
  • Frequency 50/60Hz Selectable
Fully selectable between 50/60Hz via a set of internal dip switches.
  • Autostart
Sophisticated sensing circuitry automatically switches the inverter ON and OFF with applied appliances. The Autostart is an important feature as it maximises valuable battery capacity. Sensitivity of the Autostart can be easily adjusted to either start small appliances or run continuously.
  • Durable Construction
Latronics? Inverters are a quality industrial product made to withstand vibration and constant movement in mobile or marine installations, as well as the diverse range of home or commercial applications.
  • Corrosion Conscious Design
Latronics? Inverters are built for extreme environments using a recyclable powdercoated aluminium casing, a more noble metal than steel.
  • High Efficiency Toroidal Transformer
Toroidal transformers provide the highest efficiency and durability.
  • High Surge Rating
High surge rating allows easy starting of motors and high inrush current devices.
  • DC Circuit Breaker
Protects the inverter and cables from becoming a potential fire hazard under fault conditions, as well as providing full isolation from your batteries while switched OFF, reducing the need for additional battery fuses.
  • AC/DC  Isolation
Full 3500V AC/DC isolation.
  • Heavy Duty DC Battery Leads
High quality, high current DC leads for low loss power delivery.
  • LED Status Indicators
A full set of LED's keeps the user informed of its operation at all times.
  • Australian
A complete Australian made product, proudly designed and manufactured in Australia by a 100% Australian owned company.
  • Options
A large range of options from custom voltages and alarm contacts to vibration proofing and conformal coatings.





Features

  • PERFORMANCE:
  • ? A True Sinewave inverter with unmatched surge power - enabling the operation of demanding appliances, such as fridges, microwaves, washing machines and pumps
  •
  • RELIABILITY:
  • ? Benchmark quality standards ensure optimum reliability, backed by a full 2 years parts and labour warranty
  •
  • AUSTRALIAN
  • ? A complete Australian made product, proudly designed and manufactured in Australia by a 100% Australian Owned company
  •
  • PROTECTION
  • ? Sophisticated circuitry provides protection against overload, short circuit, over temperature and high/low voltage shutdowns
  •
  • STANDBY MODE
  • ? A valuable power saving feature that automatically turns your inverter ON and OFF with the load
  •
  • TOROIDAL TRANSFORMER
  • ? Provides full isolation between AC and DC reducing the risk of electric shock
  •
  • DC CIRCUIT BREAKER
  • ? Provides full isolation from your batteries while switched OFF reducing the need for additional battery fuses
  •
  • WALL MOUNT DESIGN
  • ? Allows flexibility and ease of installation

  •

Applications



  • Home

  • Boats

  • Caravans

  • Motor homes

  • Tradesman

  • Business applications



Safe and Reliable



Model

LS-512

LS-624

LS-648

LS-6110

LS-6125

Nominal Battery Voltage

12 V

24 V

48 V

110 V

125 V

Continuous Power

500 W

600 W

600 W

600 W

600 W

? Hour Rating

550 W

750 W

750 W

750 W

750 W

Surge Rating (5 seconds)

1500 W

2000 W

2000 W

2000 W

2000 W

Input Voltage Range

10.5-17 V

21-34 V

42-68 V

80-140 V

96-160 V

Standby Current

27 mA

  22mA

19 mA

16 mA

15 mA

Inverter ON ? no load

0.42 A

0.31 A

0.18 A

0.15 A

0.14 A

Peak Efficiency

90 %

92 %

93 %

93 %

93 %

Weight

5.5 Kg

  5.5 Kg

  5.5 Kg

4.7 Kg

4.7 Kg

Dimensions

260mm L x 160mm W x 100mm H

Output Voltage

230 V (+/- 4%)

Output Waveform

True Sinewave

Total Harmonic Distortion

< 4%

Output Frequency

50Hz  (+/- 0.1%)

Power Factor

All Conditions

Opertating Temperatures

-10deg to +50deg

Auto Start Sensitivity

0 - 20 W adjustable

Input/Output Isolation

3500 V

Protection Circuitry

Overtemperature - Overload/Short Circuit - Battery Undervoltage - Battery Overvoltage

Battery Leads

1.0m Long with 10mm Mounting Lug

DC Isolation

Thermal/Magnetic Circuit Breaker

Output Wiring

Single GPO

Chassis

Powder Coated 2mm Aluminium

Standards

AS2279, AS3000, AS3001, EN55014, & C-Tick

Warranty

2 Years Parts and Labour

RatingsSpecifications @ 25?C Ambient, Nominal Battery Voltage & Unity Power Factor

Due to constant improvements specifications are subject to change without prior notice.
