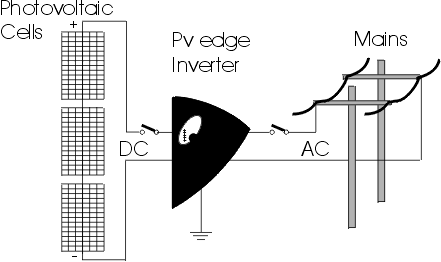

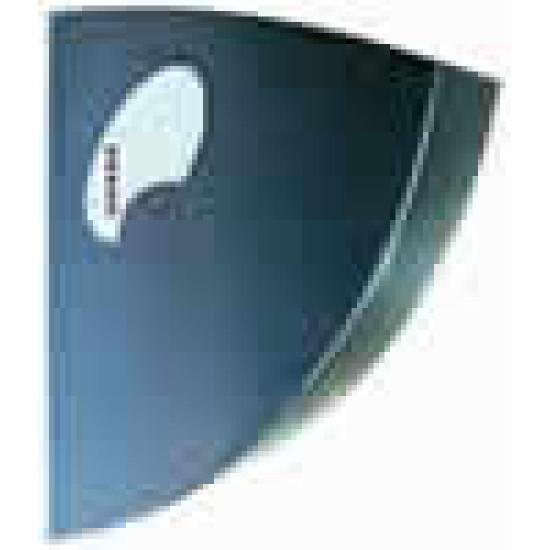

PV EDGE - Grid ConnectPower to the People! Turn your home into a green power station The PV Edge is the first Australian designed and manufactured grid interactive inverter for the home. It enables you to turn energy from the sun into electricity for your community. A grid interactive system enables you to feed that electricity you've generated back to the mains supply. This effectively spins your electricity meter backwards and reduces demand on power generators. Safety The PV Edge has an isolation rating of 3500V between AC and DC via the toroidal transformer, which ensures extremely safe and risk free operation.All the switching electronics and control circuitry are on the DC input. The inverter AC output is connected directly to the transformer output winding.
|
Features
Cut down on this:
Start Saving |
TECHNICAL SPECIFICATIONS
Ratings @ 25 deg. Nominal Battery Voltage and Unity Power Factor
INPUT DATA | |
Recommended Solar Input @ 25deg | 1500 W |
Maximum Input Voltage | 150 V DC |
Maximum Power Point Tracking Range | 85 - 140 V DC |
Automatic Turn On | 100 V DC |
Number of Modules in Series | 6 x 12 V Modules |
Starting Operation | 10 W |
Reverse Polarity Protection | Short Circuit Diode Across PV Terminals |
OUTPUT DATA | |
Output Power | 1300 W MAX |
Output Voltage Range | 205 - 265 VAC |
Output Frequency | 50 +/- 1Hz |
Output Current Harmonic Distortion | <4% |
Power Factor | 1 |
Peak Efficiency | 93% |
Night Time Power Consumption | Zero - Automatically Disconnects From AC Grid |
Input/Output Isolation | 3500 V via Toroidal Transformer |
Operating Temperatures | -10 deg to 50 deg |
Anti Islanding Protection | Over/Under Voltage, Over/Under Frequency & Active Phase Shift |
GENERAL DATA | |
Status Indicators | Output Power in 20% Increments |
Solar Input ON | |
AC Grid Monitoring - Stability Check | |
Wall Mount Enclosure | 3mm Powder Coated Aluminium |
Dimensions | H 420 x W 340 x D 166mm |
Weight | 17 kg |
Connections | 10mm Terminal Block |
Warranty | 2 Years |
Standards | C-Tick, ESAA Aproval No.51973, Certificate of Suitability Q01307, AS3000, EN55014 |
Recommended Solar Input Configuration
Panel Power at 25?C | Module Type | Number of Panels Per String | Number of Strings | Solar Input Power |
40W | 12V | 6 | 6 | 1440W |
45W | 12V | 6 | 5 | 1350W |
50W | 12V | 6 | 5 | 1500W |
55W | 12V | 6 | 4 | 1320W |
60W | 12V | 6 | 4 | 1440W |
65W | 12V | 6 | 4 | 1560W |
70W | 12V | 6 | 3 | 1260W |
75W | 12V | 6 | 3 | 1350W |
80W | 12V | 6 | 3 | 1440W |
85W | 12V | 6 | 3 | 1530W |
90W | 12V | 6 | 2 | 1080W |
95W | 12V | 6 | 2 | 1140W |
100W | 12V | 6 | 2 | 1200W |
110W | 12V | 6 | 2 | 1320W |
120W | 12V | 6 | 2 | 1440W |
120W | 24V | 3 | 4 | 1440W |
130W | 24V | 3 | 4 | 1560W |
140W | 24V | 3 | 3 | 1260W |
150W | 24V | 3 | 3 | 1350W |
160W | 24V | 3 | 3 | 1440W |
170W | 24V | 3 | 3 | 1530W |
|
