Selctronics are fast becoming known for their quality range of inverters. Quality items that are reliable their inverters come with a huge 5 year warranty!

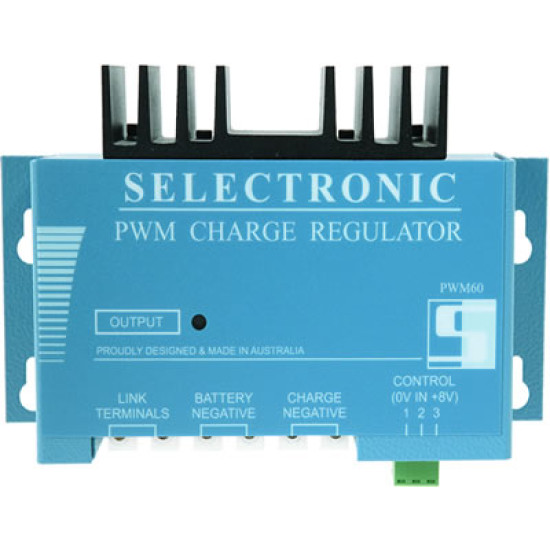

The PWM 60 charge regulator is a high performance, low cost companion to all Selectronic SA22, SA32 and SA42 inverters. The SA22, SA32 and SA42 sinewave inverters come to you inclusive of Energy Management Mk II. Add a Remote Keypad, and you have at your fingertips all this energy information at a location that is removed from your inverter, such as the kitchen wall. Add a PWM60 Charge Regulator, and all solar, wind or hydro charging of your batteries can be controlled from your inverter by entering the float, boost and equalise voltage via the inverter keypad. The PWM60 also incorporates soft switching and is therefore gentle on your batteries, promoting increased battery life. Protect your valuable batteries from damage with the Selectronic PWM60 Charge Regulator. Rated at 60 amps, the PWM60 is reverse polarity protected, simple to install and simple to use. Safety & Standards At Selectronic we are serious about your safety so we have built the PWM60 to conform to the Australian Standard AS3100 (for electrical equipment). Reliability and Warranty At Selectronic we go to extreme lengths to make sure our products will continue to perform day in and day out. With an accredited Quality Assurance program (ISO 9001) in place and many hours of exhaustive field testing, you know you can rely on your Selectronic Inverter. As proof of our confidence, Selectronic provides a five year factory warranty on the PWM60.
This provides a fully featured monitoring and control system that allows you to keep track of vital system parameters, perform control functions and allow remote communications.
This means you can safely wire the relay into a normal electrical system.
And as with all Selectronic products, the PWM60 conforms to the requirements of the Electromagnetic Compatibility framework (C tick), giving you low radio frequency interference.
SELECTRONIC PWM 60 SPECIFICATIONS
Output Current, 40?C Ambient Max. Continuous 60A Output Current, 60?C Ambient Max. Continuous 45A Charge Source Open Circuit Voltage Input Range 12 - 88V DC Battery Voltage Range 12 - 24V DC Battery Bank Input Current from Inverter, Regulator OFF - No load 20mA DC Switching Topology Single Ended Pulse Width Modulation Operating Temperature Range 0 ?C to 60 ?C Conforms to Standards AS3100 (wiring), C tick (EMI) DC Isolation None. Size 195mm wide x 130mm high x 50mm deep. Weight 1.0 kg Weight packed 1.2 kg Input lead Length not applicable Output wiring method 6 way screw terminal strip Chassis Powder Coated zinc steel (wedgwood blue) Warranty 5 year parts and labour (conditions apply)ELECTRICAL
PARAMETER
CONDITION
PWM 60 CHARGE REGULATOR
Max. Surge
120A
Max. Surge
90A
(Maximum of 40V difference between charge source and battery voltage)
(Maximum 40V battery voltage)
Terminal 6
Regulator ON - Full load
25mA DC
Note that a single pole circuit breaker should be used. (Not included)
MECHANICAL
