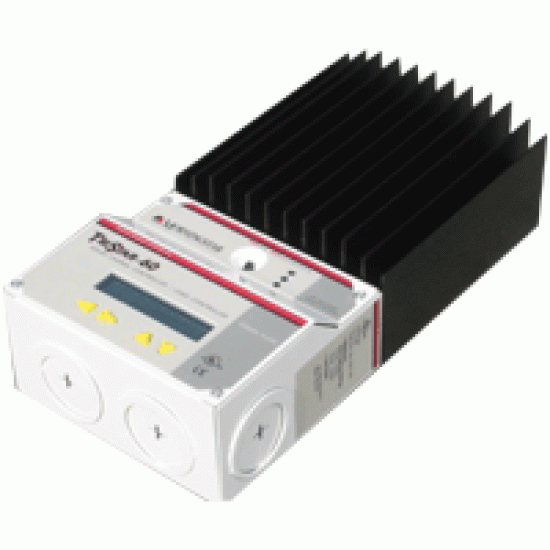

Morningstar Corporation is a world-leading supplier of photovoltaic (PV) controllersusing advanced technology. Their product range of TriStar, ProStar, SunSaver, SunLight and SunGuard have been recognized by the international PV market as the most advanced and highest-quality controllers available. Operating Modes There are three distinct and independent operating modes programmed into each TriStar. Only one mode of operation can be selected for an individual TriStar. If a system requires a charging controller and a load controller, two TriStars must be used. TRISTAR DESCRIPTION Solar battery charging The energy output of a solar array is used for recharging the system battery. The TriStar manages the charging process to be efficient and to maximize the life of the battery. Charging includes a bulk charging stage, PWM absorption, float and equalization. Load control When set for load control, the TriStar powers loads from the battery, and protects the battery from over-discharge with a current compensated LVD (low voltage load disconnect). Diversion charge control In diversion mode, the TriStar will manage battery charging by diverting energy from the battery to a dedicated diversion load. The energy source is typically wind or hydro.
PLEASE NOTE - THIS DOES NOT COME WITH THE LCD - The Optional LCD (Digital Meter), Remote Meter and Temperature Sensor are also available (select below for additional item or see the list of items available). |
Top Quality Charge Regulation!
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
