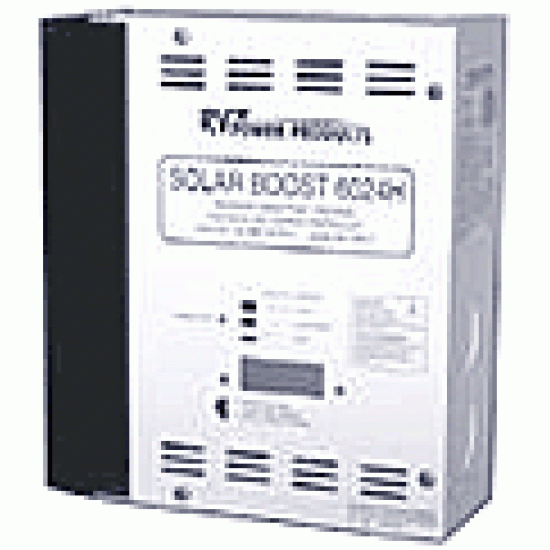

This Solar-Boost Regulator Tracks the Sun!!!Patented Maximum Power Point Tracking (MPPT) technology allows Solar Boost 6024H to increase charge current up to 30% or more compared to conventional charge controllers. Don?t waste money by throwing PV power away! Get the power you paid for with a Solar Boost charge controller.
MPPT is short for Maximum Power Point Tracking. MPPT does not physically move the PV modules to make them point more directly at the sun. MPPT is an electronic system that operates the modules in a manner that can extract more PV power and deliver higher charge current than conventional PWM charge controllers. Under optimal conditions Solar Boost MPPT charge controllers can increase charge current up 30% or more. To learn more about MPPT and how it works see the pdf file below Solar Boost 6024H is specially designed to receive a high voltage 36V or 48V PV array input, and charge a 12V or 24V battery at up to 60A. A high efficiency DC-DC voltage converter combined with MPPT technology allows Solar Boost 6024H to provide a cost effective solution for installations where the PV array must be located far from the batteries and charge controller. High voltage input reduces both wiring expense and wiring power loss. Solar Boost 6024H also provides an advanced fully automatic three stage charge control system to ensure the battery is properly and fully charged, resulting in enhanced battery performance with less battery maintenance. An equalize function is also included to periodically condition liquid electrolyte lead-acid batteries. An optional user friendly digital display is available to monitor PV charge performance. Optional temperature compensation of charge voltage is also available to further improve charge control and battery performance | Features and Benefits
? Patented MPPT Technology Increases Charge Current up to 30% Or More!? Special High Voltage design accepts 36V or 48V solar module arrays.? Charges 12V or 24V batteries at up to 60A output charge current! ? Three Stage Charge Control Optimizes Charge Parameters To Battery Size & Type? MPPT Power Converter Can Charge Lower Voltage Battery From Higher Voltage Array? Electronic Current Limit Prevents Overload Or Nuisance Fuse Blow? Available Digital Display Monitors PV Charge Performance? Durable Powder Coat Finish & Conformal Coated Electronics Resist Corrosion? Fully Protected Against Excess Current, Temperature, Transient Voltage & Polarity? Full 36 Month Limited Warranty, Optional Extended Coverage Available |
|
|
