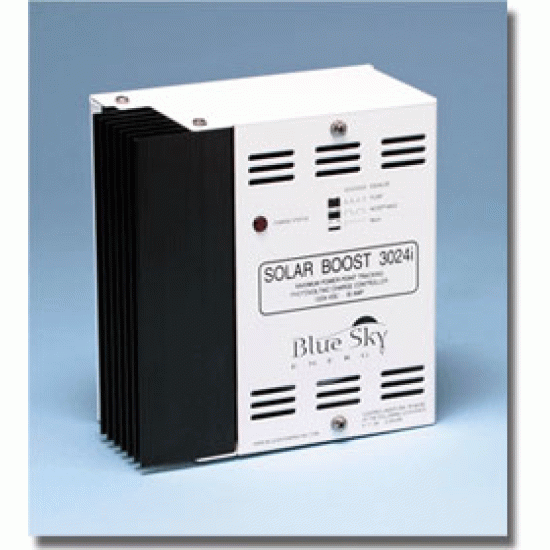

This Solar-Boost Regulator Tracks the Sun!!!Patented Maximum Power Point Tracking technology allows Solar Boost 3024i to increase charge current up to 30% or more compared to conventional charge controllers. Don?t waste your money by throwing PV power away! Get the power you paid for with a SolarBoost 3024i charge controller
MPPT is short for Maximum Power Point Tracking. MPPT does not physically move the PV modules to make them point more directly at the sun. MPPT is an electronic system that operates the modules in a manner that can extract more PV power and deliver higher charge current than conventional PWM charge controllers. Under optimal conditions Solar Boost MPPT charge controllers can increase charge current up 30% or more. To learn more about MPPT and how it works see the pdf file below Solar Boost 3024i provides an advanced fully automatic 3-stage charge control system to ensure the battery is properly and fully charged, resulting in enhanced battery
The user configurable auxiliary output can serve as either a 20 amp load controller, or as a 2 amp auxiliary battery charger. The load control feature can be used to limit excessive battery discharge in unattended remote systems, where as the auxiliary battery charge feature is ideal for charging a separate battery such as the engine battery in an RV.
Blue Sky Energy?s advanced Integrated PowerNet?, or IPN Network, allows up to 8 IPN capable charge controllers to communicate with each other and operate as a single machine rather than separate charge controllers. The IPN network also allows networked controllers to share an optional battery temperature sensor and remote display. The IPN network does not require a display or other special communication | Features and Benefits
? Patented MPPT Technology Increases Charge Current up to 30% Or More!? 30A 12/24V Ratings Support Large Solar Module Arrays? Three Stage Charge Control Optimizes Charge Parameters To Battery Size & Type? MPPT Power Converter Can Charge Lower Voltage Battery From Higher Voltage Array? Electronic Current Limit Prevents Overload Or Nuisance Fuse Blow? Available Digital Display Monitors PV Charge Performance? Durable Powder Coat Finish & Conformal Coated Electronics Resist Corrosion? Fully Protected Against Excess Current, Temperature, Transient Voltage & Polarity? Full 36 Month Limited Warranty, Optional Extended Coverage Available |
|
|
