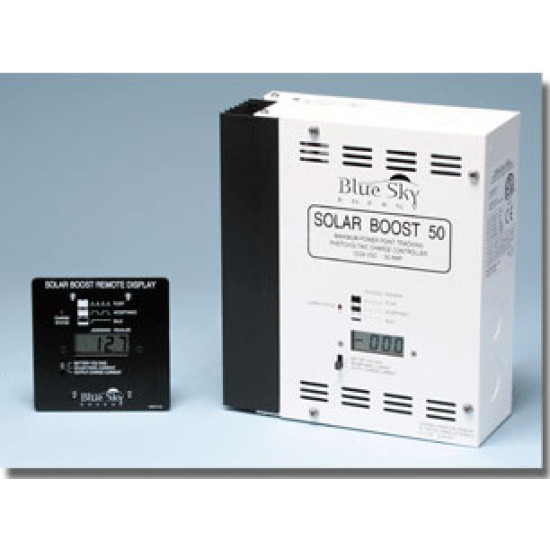

50A 12v 24v MPPT Solar Boost 50DL

50A 12v 24v MPPT Solar Boost 50DL
No Longer Available

This Solar-Boost Regulator Tracks the Sun!!!

Patented Maximum Power Point Tracking (MPPT) technology allows Solar Boost 50 to increase charge current up to 30% or more compared to conventional charge controllers.



MPPT is short for Maximum Power Point Tracking. MPPT does not physically move the PV modules to make them point more directly at the sun. MPPT is an electronic system that operates the modules in a manner that can extract more PV power and deliver higher charge current than conventional PWM charge controllers. Under optimal conditions Solar Boost MPPT charge controllers can increase charge current up 30% or more. To learn more about MPPT and how it works see the pdf file below



Don?t waste your money by throwing PV power away!

Get the power you paid for with a Solar Boost charge controller.

Solar Boost controllers also provide an advanced fully automatic 3-stage charge control system to ensure the battery is properly and fully charged, resulting in enhanced battery performance with less maintenance.

An equalize function is also included to periodically condition liquid electrolyte lead-acid batteries.

An optional user friendly digital display is available to monitor PV charge performance.

Optional temperature compensation of charge voltage is also available to further improve charge control and battery performance.



Features and Benefits



? Patented MPPT Technology Increases Charge Current up to 30% Or More!

? 50A/24V or 30A/48V Ratings Support Large Solar Module Arrays

? Three Stage Charge Control Optimizes Charge Parameters To Battery Size & Type

? MPPT Power Converter Can Charge Lower Voltage Battery From Higher Voltage Array

? Electronic Current Limit Prevents Overload Or Nuisance Fuse Blow

? Available Digital Display Monitors PV Charge Performance

? Durable Powder Coat Finish & Conformal Coated Electronics Resist Corrosion

? Fully Protected Against Excess Current, Temperature, Transient Voltage  & Polarity

? Full 36 Month Limited Warranty, Optional Extended Coverage Available



Picture of a PL20 control unit        Picture of a PL20 control unit

Extras

Manual

Right Click & 'Save As' to keep!

Data

Right Click & 'Save As' to keep!

What is MPPT?

Right Click & 'Save As' to keep!

Unlimited Blocks, Tabs or Accordions with any HTML content can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.
50A 12v 24v MPPT Solar Boost 50DL

Write a review

Please login or register to review
  • Stock: No Longer Available
  • Model: Boost50DL
  • Weight: 7.00kg
190 sold
$949.00
Ex Tax: $862.73
