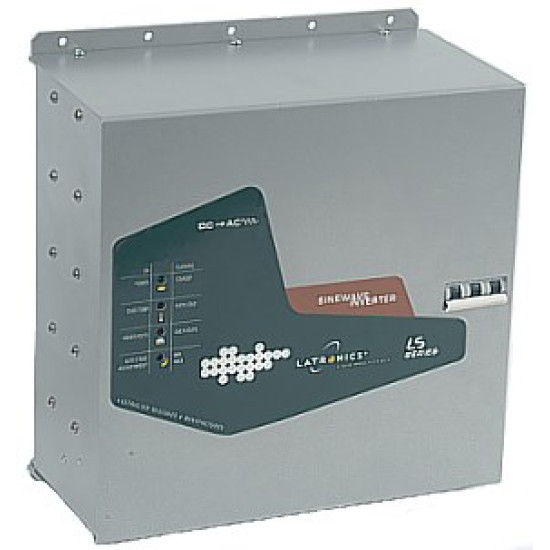

1800w 24v (5400w surge) 240v Inverter LS1824

Features

• PERFORMANCE:
• ? A True Sinewave inverter with unmatched surge power - enabling the operation of demanding appliances, such as fridges, microwaves, washing machines and pumps
•
• RELIABILITY:
• ? Benchmark quality standards ensure optimum reliability, backed by a full 2 years parts and labour warranty
•
• AUSTRALIAN
• ? A complete Australian made product, proudly designed and manufactured in Australia by a 100% Australian Owned company
•
• PROTECTION
• ? Sophisticated circuitry provides protection against overload, short circuit, over temperature and high/low voltage shutdowns
•
• STANDBY MODE
• ? A valuable power saving feature that automatically turns your inverter ON and OFF with the load
•
• TOROIDAL TRANSFORMER
• ? Provides full isolation between AC and DC reducing the risk of electric shock
•
• DC CIRCUIT BREAKER
• ? Provides full isolation from your batteries while switched OFF reducing the need for additional battery fuses
•
• WALL MOUNT DESIGN
• ? Allows flexibility and ease of installation

•

Applications

• Home

• Boats

• Caravans

• Motor homes

• Tradesman

• Business applications

Safe and Reliable

Inverter Model

LS-1512

LS-1824

LS-1848

LS-18110

LS-18125

Nominal DC Voltage

12 V

24 V

48 V

110 V

125 V

Continuous Power

1500 W

1800 W

1800 W

1800 W

1800 W

? Hour Rating

1600 W

2200 W

2200 W

2200 W

2200 W

Surge Rating (5 seconds)

4500 W

5400 W

5400 W

5400 W

5400 W

Input Voltage Range

10.5-17 V

21-34 V

42-68 V

80-140 V

96-160 V

Standby Current

42 mA

30 mA

24 mA

18 mA

17 mA

Inverter ON ? no load

0.67 A

0.32 A

0.26 A

0.21 A

0.19 A

Peak Efficiency

91 %

94 %

94 %

94 %

94 %

Weight

14 Kg

14 Kg

14 Kg

14 Kg

14 Kg

Dimensions

330 mm L x 296 mm W x 150 mm H

Output Voltage

230Vac +/- 4%

Output Waveform

True Sinewave

Total Harmonic Distortion

<4%

Output Frequency

50Hz +/- 0.1%

Power Factor

All Conditions

Operating Temperature

-10? C to +50? C

Autostart Sensitivity

0 ? 20 W adjustable

Input/Output Isolation

3500V

Protection Circuitry

Overtemperature - Overload/Short Circuit - Battery Undervoltage - Battery Overvoltage

Battery Leads

1.5m long with 10mm mounting lugs

DC Isolation

Thermal/Magnetic Circuit Breaker

Output Wiring

Single power outlet & junction box

Chassis

Powder coated 3mm Aluminium

Standards

AS2279, AS3000, AS3001, EN55014, & C-Tick

Warranty

2 Years Parts and Labour
