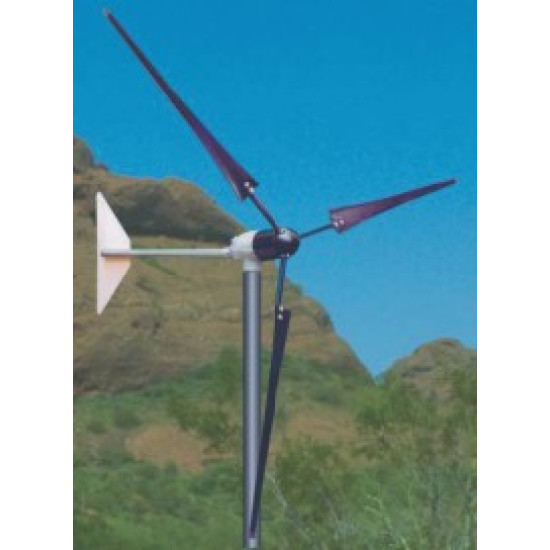

1000 Watt 12, 24, 36, 48V Whisper 200 Wind Turbine

1000 Watt 12, 24, 36, 48V Whisper 200 Wind Turbine
New 7-10 Days
A very useful size - 1000 watts from this USA made wind turbine that is highly adaptable to many setups. Get power when the sun is down...

Get Serious with Whisper!

This is a High-Class, High Powered Wind turbine that produces power for living. Ideal for some residential and semi rural areas it can be utilized for remote power or grid-connected systems.

 12 - 48 Volt, 1000 Watt, External Controller

The H80 is designed for the user located in low to moderate wind speed averages (less than 12mph, 5.4m/s).

The bigger brother to the H40, the H80 features a 10 ft (3.1m) rotor diameter and an 80 sq. ft. swept area that provides the user with greater output at low wind speed averages. The H80 has twice the swept blade area, providing double the potential energy as compared to the H40.

The H80 also incorporates a permanent magnet alternator powered with an advanced airfoil, thus capturing the most energy in its class as compared to other competitive wind turbines. At 12 mph average wind speed, the H80 can deliver 6.3 KWH per day.

In addition to its patented smooth acting side furling design, the Whisper 200 has a number of new features that make it idea for any new or existing photovotaic system.

  • A new four bearing spindle for a smoother operation and longer life

  • An upgraded Yaw shaft that more efficiently delivers current to your batteries

  • New bronze bushing and larger diameter furling pin for smoother furling action

  • New castings that allow easy access to the stator for changing voltage

Included with every whisper is our new Whisper Controller. Unlike many of our competitors, the Whisper controller includes a diversion load to ensure quiet safe operation of your wind turbine when the batteries are charged.

It installs in minutes and it protects both your wind turbine and battery. The Whisper controller fits easily inside your battery room. Add the optional LCD display and you will instantly receive real time data on the performance of your Whisper 100. The display can be mounted on the controller or a 1000ft (300 meters) away letting you know what is happening. You can even add an anemometer to your controller and now you can measure wind speed and compare it to the output to make sure you are getting the most from your Whisper 100.

Exclusive to the Whisper, the side-furling Angle-Governor protects the turbine in high winds by turning the alternator and blades out of the wind, reducing turbine exposure. Unlike other wind turbines that lose as much as 80% of their output when furled, the Angle-Governor allows the Whisper to achieve maximum output in any wind.





NOW WITH A FIVE YEAR WARRANTY!



Features



? Stronger cast aluminum housing

? Sealed yaw bearings

? Temperature tested from -40?C to 47?C

? Increased heat transfer for better cooling

? Composite blades

? New furling pin

? Triple bearing spindle

? Easy access block connectors for turbine and battery wires

? Bright LED lights to inform of regulation operation and "Power On"



Applications

? Stand-alone or hybrid telecommunication systems

? Remote homes & cabins

? Homestead applications

CAN BE USED ON IT'S OWN OR IN COMBINATION WITH SOLAR PANELS



Performance

Mechanical & Electrical Specifications

Rotor Diameter

3.0 metres (10 ft)

Weight

30 kg (65 lbs)

Mount

2.5" Schedule 40

Start up wind speed

7 mph (3.4 m/s)

Voltage

12,  24, 36, 48 VDC, 230v High VAC

Peak Power

1000 Watts at 24 mph (10.5 m/s)

Air X Wind Turbine Performance diagram

Air X Average Output

Extras

Manual

Right CLick & 'Save As' to keep!

Specs

Right Click & 'Save As' to keep!

Brochure

Right Click & 'Save As' to keep!

A Video of the Whisper in Motion!

Unlimited Blocks, Tabs or Accordions with any HTML content can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.
1000 Watt 12, 24, 36, 48V Whisper 200 Wind Turbine

Write a review

Please login or register to review
  • Stock: 7-10 Days
  • Model: Whisper200
  • Weight: 90.00kg
190 sold
$4.80
Ex Tax: $4.36
